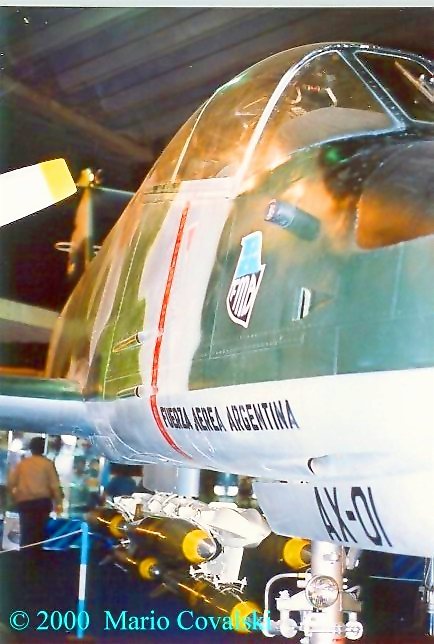

FMA IA-58 Pucará

by Mario Covalski


Specifications:
Manufacturer: FMA
Origin country : Argentina
Function: Tactical support and ground attack STOL
Year: 1969
Crew: 2
Estimated Cost: 2,3 millions of dollars


Revisions:
First version IA-58A
IA-58B (Bravo) updated motors, first flight 15/5/1979
IA-58C (Charlie) version fighter-bomber single-seater
Motor: two Turbomeca Astazou XVI-6
Rate of speed: 500 km/h level flight, 750km/h maximum
Take-off run: 300m
Service ceiling: 10000m
Autonomy: 1705km (with three additional tanks), 460km loaded to the maximum


Size:
Span: 14,50 m
Length: 14,255 m
High: 4,75 m
Wing Surface: 30,30 m˛
Weight: 9.836 kg empty / 25.514 maximum to the take off
Range: 3400 km


Armament:

Four machine guns 7,62mm Browning with 900 bullets
Two 20mm cannons HH DCA-804 with 270 bullets
Conventional bombs, brakings and Napalm
Grenade launcher of 74mm
Rockets of 70mm LAU-60
Fuel tanks: two of 318 liters or one of 1100 liters
Total load: 1500kg



1/63th  model highly modified

by Mr. Julio Vergel (IPMS Tucuman, Argentina)
